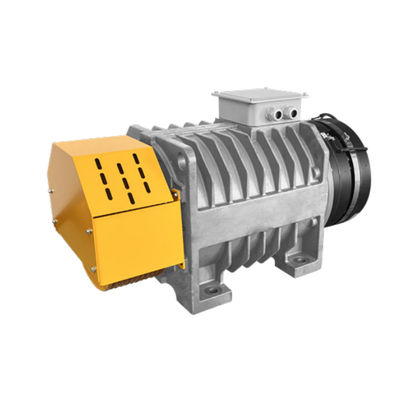

Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes

Certificaat
CHINA SHANGHAI SUNNY ELEVATOR CO.,LTD certificaten
CHINA SHANGHAI SUNNY ELEVATOR CO.,LTD certificaten
Klantenoverzichten
De dienst   is   people-oriented   en   de eerlijkheid   is     het meeste aantrekkelijke  . Het is een genoegen om met u samen te werken

—— Millay

Ik ben online Chatten Nu

Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes

Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes
Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes

Grote Afbeelding :  Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes

Productdetails:
Plaats van herkomst: CHINA
Merknaam: SUNNY
Certificering: CE,ISO9001
Modelnummer: SN-ER3
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 pc's
Prijs: $1900~2200
Verpakking Details: Houten doos
Levertijd: 7 ~ 15 dagen
Betalingscondities: Western Union, T/T, L/C, Paypal
Levering vermogen: 5000 PCs-Maand

Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes

beschrijving
Productnaam: Lift gearless tractiemachine Laden: 1350/1600KG
Motorgewicht: 430 kg Snelheid: 1.0~2.0m/s
INS.Klasse: F REM: DC110V 2x1,5A
Transport: Zeevering Sollicitatie: lift.lift
Model: Gearlessmotor Product: Gearlessmotor
Gebruik: Gearlessmotor

Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes



ELEVATOR TRACTION MACHINE

Suspension 2:1
Voltage 380V
Pole 20
Rating S5(40%)
INS.Class F
IP Code IP41
SPZ800B Brake DC110V 2X1.5A
Max.Static Load 4500kg
Weight 430kg



TECHNICAL DATA

Spec Load(kg) Speed(m/s) Sheave Dia(mm) Rope Grove(mm) Current(A) Torque(Nm) Rated Speed(rpm) Frequency(Hz) Power(kW)
ER3-131P0C 1350 1.0 Φ320 9xΦ8x12 22 721 119 19.9 9
ER3-131P51 1.5 30.8 721 179 29.8 13.5
ER3-131P6C 1.6 36.5 721 192 32 14.5
ER3-131P7C 1.75 36.5 721 209 34.8 15.8
ER3-132P0C 2.0 41.6 721 239 39.8 18
ER3-161P0C 1600 1.0 Φ320 10xΦ8x12 25 836 119 19.9 10.5
ER3-161P5C 1.5 35 836 179 29.8 15.7
ER3-161P6C 1.6 43 836 192 32 16.7
ER3-161P7C 1.75 43 836 209 34.8 18.3
ER3-162P0C 2.0 48 836 239 39.8 20.8



Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes 0



Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes 1Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes 2Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes 3



Machine Room Less Traction Elevator 1350kg Gearless Motor For Elevator With Elevator Brakes 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
