320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine

320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine
320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine
320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine 320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine 320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine 320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine

Grote Afbeelding :  320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine

Productdetails:
Plaats van herkomst: CHINA
Merknaam: SUNNY
Certificering: CE,ISO9001
Modelnummer: SN-KA100
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1Set
Prijs: $500~1200
Verpakking Details: Houten doos
Levertijd: 7 ~ 15 dagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 5000 pcs/maand
Contact

320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine

beschrijving
Naam: Liftgordelaandrijving Traction Machine zonder lift Laden: 320 kg ~ 1000kg
Snelheid: 0,5 ~ 1,5 m/s Tractieratio: 2: 1
Statische belasting: 1500 kg Spanning: 220V/380V
Garantietijd: 12 maanden Sollicitatie: lift.lift
Model: Liftgordelaandrijving Traction Machine zonder lift Type: Liftgordelaandrijving Traction Machine zonder lift

320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine

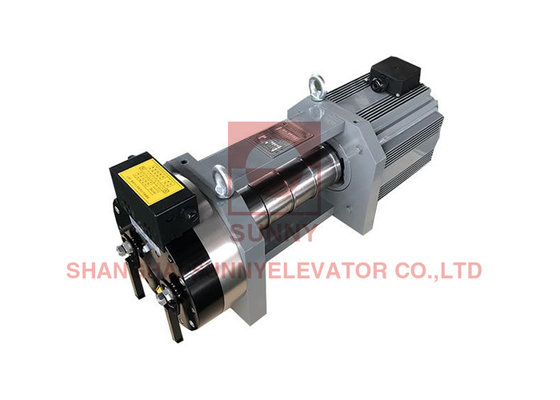

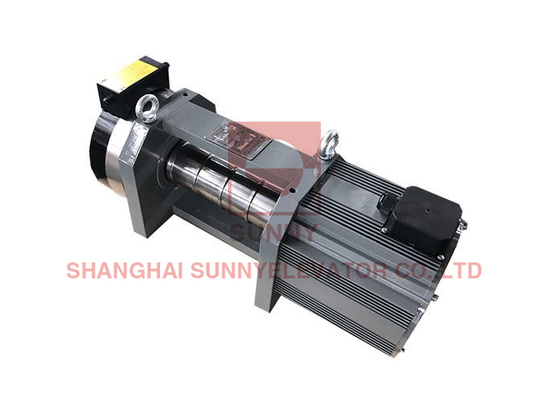

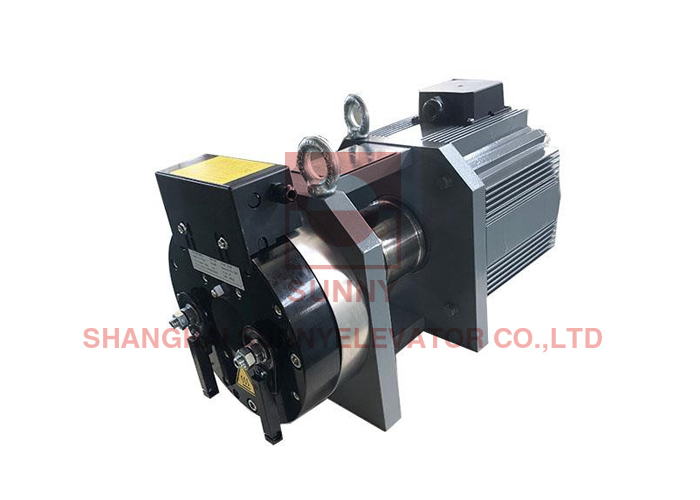

Quality elevator steel belt gearless traction machine with CE certificate



Load:320kg~1000kg Voltage:220V/380V IP Code: IP41
Speed:0.5~1.5 m/s Brake Vol: DC110V INS.Class: F
Roping:2:1 Static Load:5000kg Poles: 16



SN-KA100 Series Direct drive Machine Drum Traction Machine Specification

Type

Load

(P+Q)
[kg]

 Lift
Speed
[m/s]		 Drum
Diam
[mm]		 Groove Power
[kW]		 Torque(Nm) Speed
[r/min]		 Current
[A]-220V		 Current
[A]-380V		 Freq
[Hz]		 Poles
SN-KA100 320 0.5 100 2×30-65 1.2 62 191 7 5 25.6 16
1.0 100 2.5 382 9 6 51.2 16
SN-KA100 400 0.5 100 2×30-65 1.4 70 191 8 5 25.6 16
1.0 100 2.8 382 10 7 51.2 16
SN-KA100 450 0.5 100 2×30-65 1.6 80 191 7 5 25.6 16
1.0 100 3.2 382 12 8 51.2 16
SN-KA100 630 0.5 100 2×30-65
3×30-65		 2.2 110 191 8 6 25.6 16
1.0 100 4.4 382 15 9 51.2 16
1.5 100 6.6 573 23 15 76.8 16
SN-KA100 800 1.0 100 3×30-65 5.4 135 382 19 11 51.2 16
1.5 100 4×30-65 8.1 573 29 18 76.8 16
SN-KA100 1000 1.0 100 3×30-65 6.8 170 382 24 14 51.2 16
1.5 100 4×30-65 10.2 573 36 23 76.8 16



320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine 0

320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine 1



320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine 2

320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine 3

320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine 4

Frequently Asked Questions
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. The tensile strength exceeds the lift weight, with a safety factor of four or more wire ropes, preventing simultaneous breakage.
2. Is it dangerous during sudden power failure while the elevator is running?
In such cases, the elevator automatically stops due to electrical and mechanical safety devices. The brakes engage during power failure. Planned outages are preceded by prior notice from power supply departments.
3. Will users be hurt if the doors close suddenly?
The doors automatically reopen when touched during closing, with anti-pinch switches preventing closure. The closing force is carefully calibrated for safety.
4. How does the elevator operate?
Elevators move via counterweight wire ropes through traction drive, moving vertically along guide rails.
5. Is escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, enabling easier installation and more convenient commissioning.
6. Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
