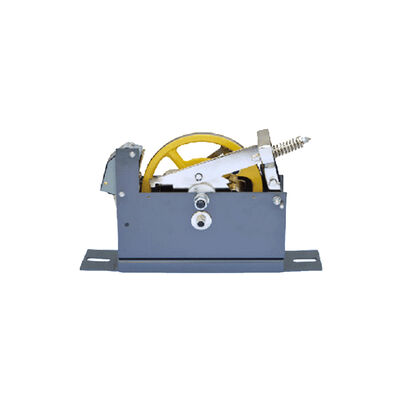

Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm

Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm
Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm

Grote Afbeelding :  Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm

Productdetails:
Plaats van herkomst: China
Merknaam: SUNNY
Certificering: CE,ISO9001
Modelnummer: SN-SG-XS200
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 STUKS
Prijs: $120
Verpakking Details: In kartonnen doos
Levertijd: 7 ~ 15 dagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 5000 PCs-Maand

Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm

beschrijving
Naam: Machinekamerloze liftsnelheidsregelaar Snelheid: ≤1,0、 1,5、1,75 M/S
De Diameter van het kabelwiel: Ф200 mm Trekkracht: 700-1500N
Gebruikt: Liftdelen model: Machinekamerloze liftsnelheidsregelaar
Garantie tijd: 12 maanden Touw Dia: 6 mm
Type: Machinekamerloze liftsnelheidsregelaar Product: Machinekamerloze liftsnelheidsregelaar

Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm





Overspeed governor SN-SG-XS200
Type Rated speedV(m/s) Rope tension force(N) Rope Dia.(mm) Sheave pitch Dia.(mm)
SN-SG-XS200 ≤1.0, 1.5,1.75 700-1500 Φ6 Φ200



Tension device Lifting height H(m) Tensioning force(N) (The optional tension device please see tension device section)
XSY200.2A(F) ≤80 300 /
XSY200.2B (F) 80<H≤120 450 /



Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm 0



Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm 1



Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm 2



Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm 3



Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm 4Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm 5Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm 6



Elevator Accessories Machine-Room-Less Elevator Speed Governor With Rope Dia 6mm 7



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
